Designed to deliver industry-leading energy efficiency with an ultra-low-SWaP laser architecture.

Hazel Key Specifications:

A horizontal gradient bar transitioning through shades of blue, gray, white, green, brown, and red.

Wavelength: 1064nm / 532nm

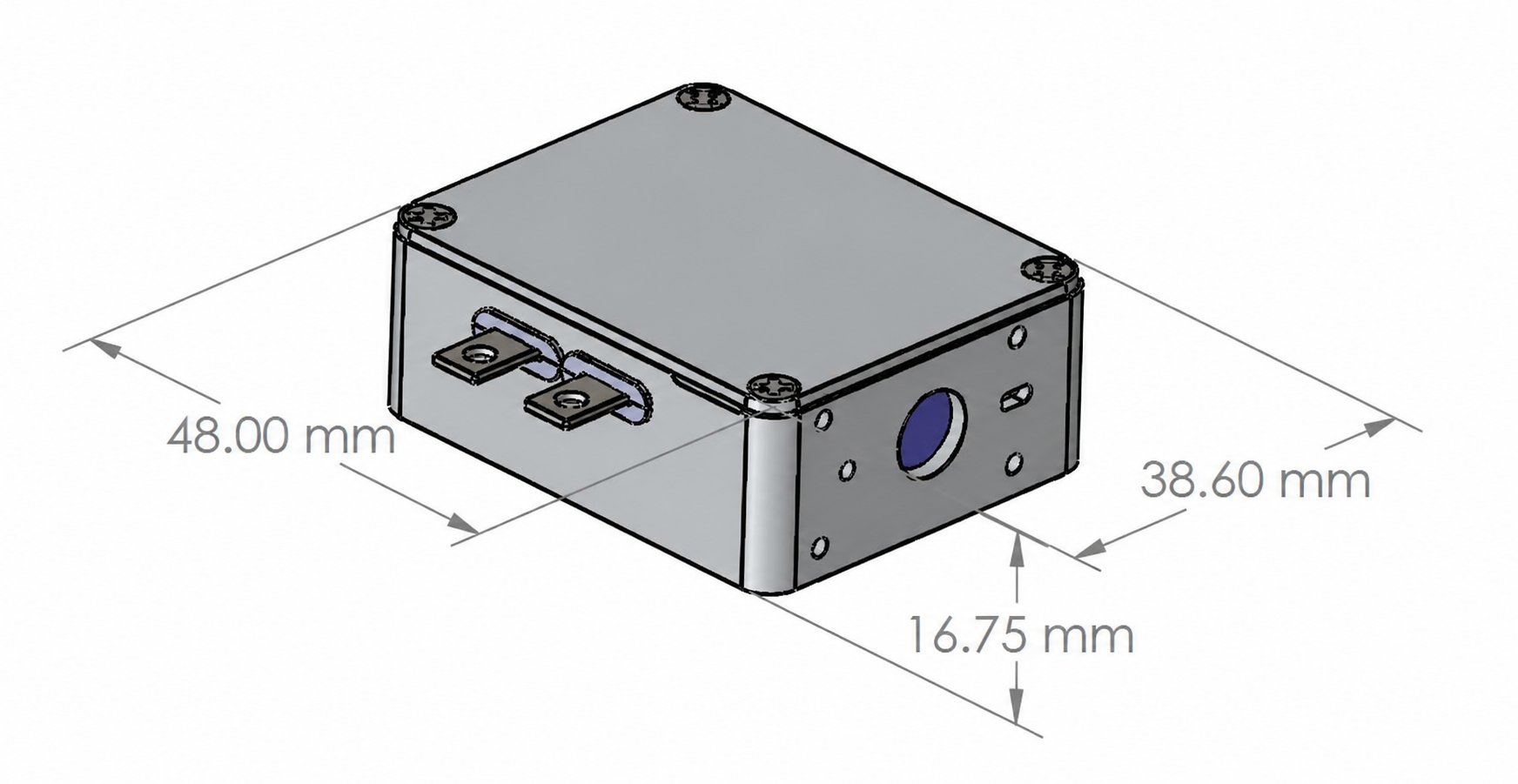

Laser Dimensions: 52mm x 38.6mm x 17mm (Same Dimensions for Both Energy Options)

Pulse Energy Options: Option 1: >15mJ and Option 2: >30mJ

Pulse Width:‍ ‍10ns to 25ns (Typical 12ns)

Pulse Repetition Rate:‍ ‍7-20Hz

Operating Temp.: -20C to 65C

Beam Divergence:

1.2mrad (1200.0 urad) with a 1.25x telescope

0.375mrad (375.0 urad) with 4x telescope

0.1875mrad (187.5 urad) with 8x telescope
